EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure

Name: EMERSON Tescom 262700 Series Backpressure Control Regulator Low Pressure
Brand: TESCOM
Price: 1 USD

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure Manufactures

Brand Name : TESCOM

Model Number : 26-2700

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50

Delivery Time : 4-10 weeks

Packaging Details : Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)

Product name : EMERSON Tescom 26-2700 Series Backpressure Control Regulator

Brand : TESCOM

Model : 26-2700

Seat, Main Valve : CTFE, Vespel SP21

Bonnet, Back-cap,Body : Brass, 303 Stainless Steel, 316 Stainless Steel

Remaining Parts : 300 Series Stainless Steel, Nitronic 60

Operating Temperature : See Part Number Selector

Port Size & Type : SAE, NPTF 1/2, 3/4

Hysteresis : ±0.5% F.S

Sensitivity : ±0.2% F.S

Reapeatability : ±0.3% F.S

Contact Now

Product Description

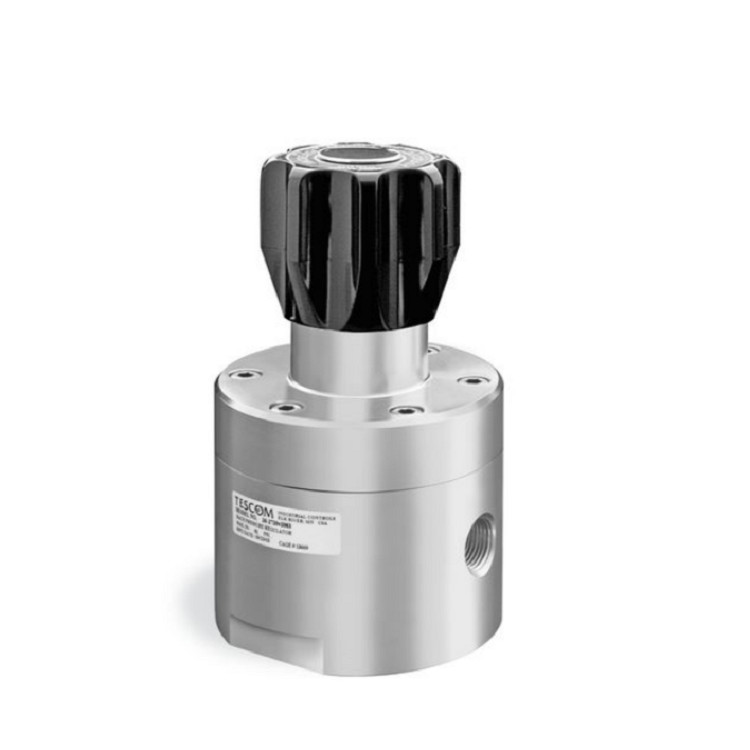

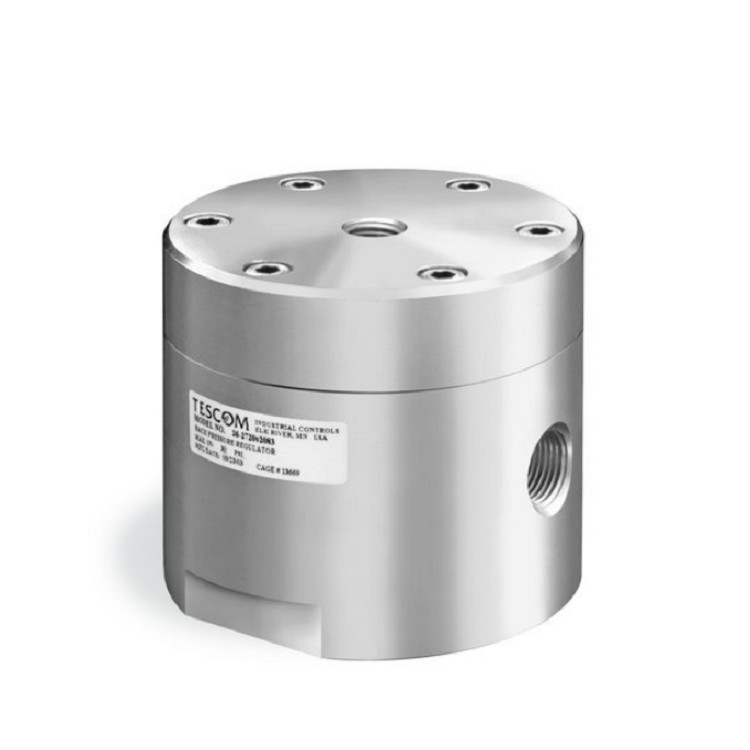

EMERSON Tescom 26-2700 Series Backpressure Control Regulator


26-2700 Series is a high flow, low pressure backpressure regulator with spring, dome and air loading options.Ideal for use in pump and compressor control and process pressure control. Suitable for high flow, low pressure chemical injection.
 Maximum Inlet Pressures Air Loaded: 450 psig / 31.0 bar
 Dome Loaded: 1000 psig / 69.0 bar
 Spring Loaded: 0 -
 30, 80, 185, 300, 375 psig / 2.1, 5.5, 12.8, 20.7, 25.9 bar

 Seat, Main Valve CTFE, Vespel® SP21

Body, Bonnet, Back-cap Brass, 303 Stainless Steel, 316 Stainless Steel

O-Rings Buna-N, Ethylene Propylene., Viton®

Diaphragm Gylon®

Remaining Parts 300 Series Stainless Steel, Nitronic 60

Operating Temperature See Part Number Selector

Port Size & Type SAE, NPTF 1/2, 3/4

Flow CapacityCv = 2.0

Load TypeSpring, Air, Dome

Weight approximate:10.5 lbs / 4.8 kg

Additional Information For custom modifications or a complete system solution, please contact your local sales office.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	210 psi (1.5 MPa, 15 bar) maximum
Operating Temperature	Standard Temperature
Connection	SOLENOID
Application	Gas& Oil industry
